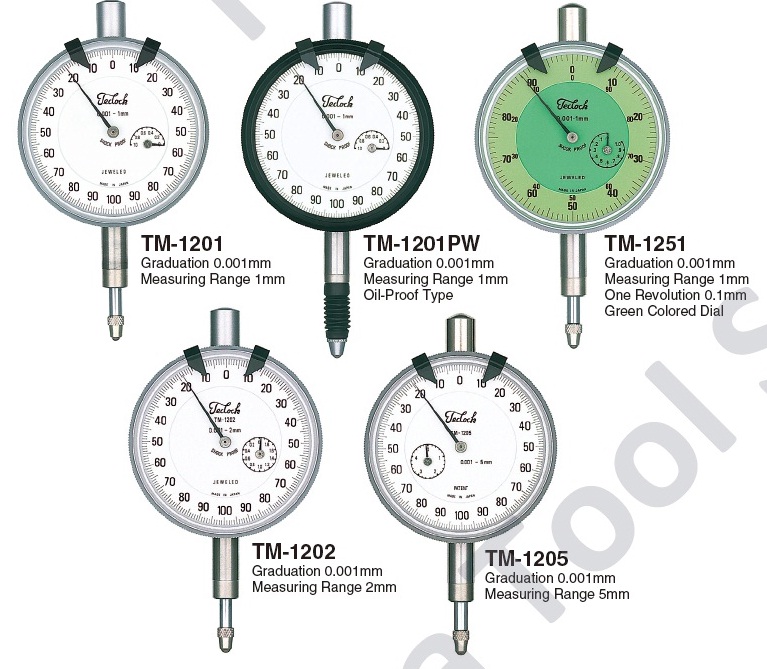

Teclock - 0.001mm scale mark dial indicator


TM-1201, TM-1201PW, TM-1251, TM-1202, TM-1205
  • Standard gauge of scale interval 0.001mm and outer frame diameter 56mm
  • Protection and durability of mechanism parts like gear are pursued by impact release mechanism( shock proof ).
  • Jewel axis is applied to improve durability.
  • Stable repeated precision is realized by applying level enlargement mechanism.
  • Limiter is equipped as standard for all models. it is convenient to set up tolerance range.
  • Lift lever can be adopted.
Model : TM-1201, TM-1201PW, TM-1251, TM-1202, TM-1205

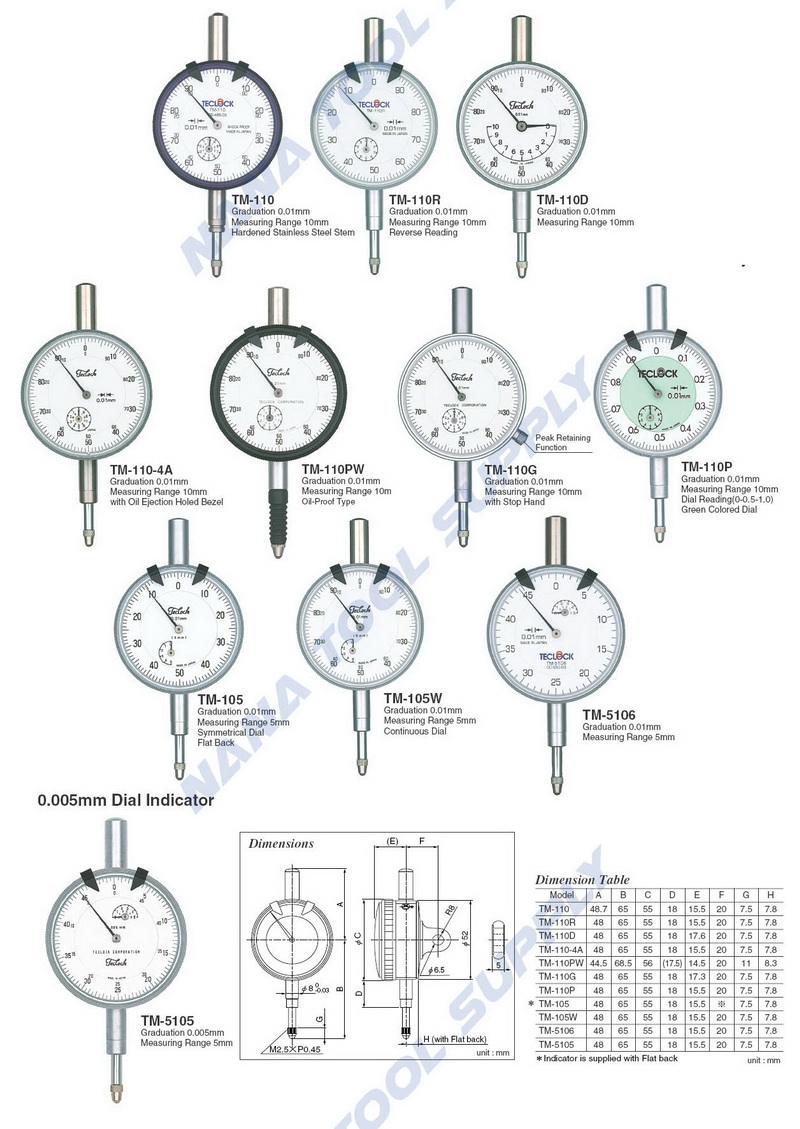

Teclock - 0.01mm scale mark dial indicator

TM-110, TM-110R, TM-110D, TM-110-4A, TM-110PW, TM-110G, TM-110P, TM-105, TM-105W, TM-5106, TM5105
  • This is the most standard dial gauge of which scale interval is 0.01mm.
    A model can be selected according to usage among stainless stem, central 2 hands , oil ejecting function and night line function.
  • This is standard series for high durability and high accuracy made by pursuing parts precision.
  • Shock proof function is adopted to all models.
Model : TM-110, TM-110R, TM-110D, TM-110-4A, TM-110PW, TM-110G, TM-110P, TM-105, TM-105W, TM-5106, TM-5105

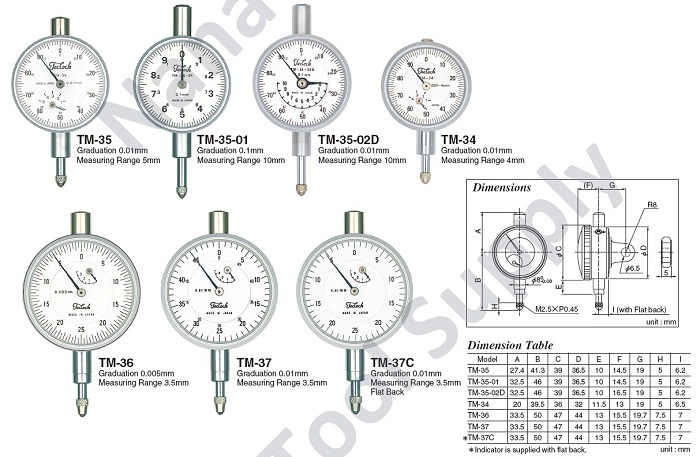

Teclock - Small dial indicator


TM-35, TM-35-01, TM-35-02D, TM-34, TM-36, TM-37, TM-37C,
  • As outer frame diameter is small ( minimum diameter : 36mm),this is suitable for production line with narrow set up space and to measure many points with machines put in.
  • Lift lever can be adopted ( excluding TM-34)
  • Line up of measuring range 3.5mm, 4mm, 5mm and 10mm although this is small.
Model : TM-35, TM-35-01, TM-35-02D, TM-34, TM-36, TM-37, TM-37C

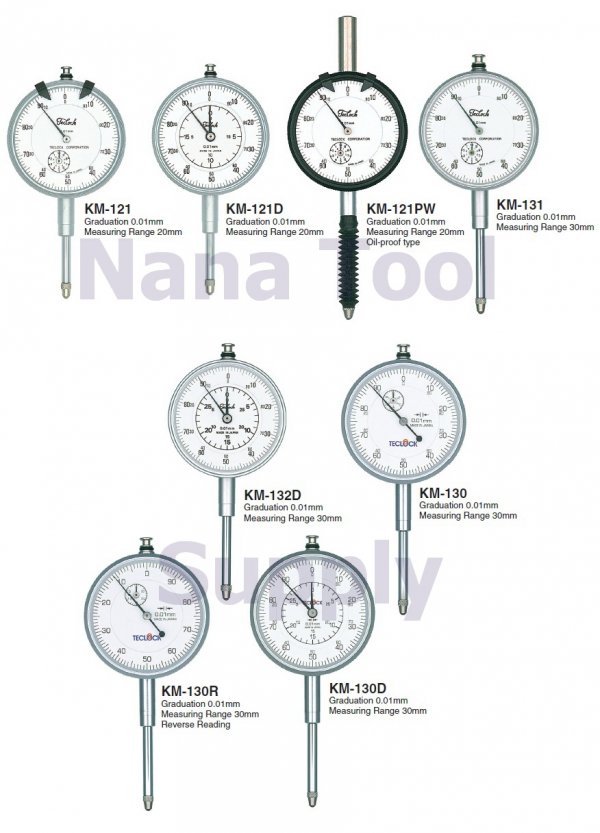

Teclock - 0.01mm scale mark long stroke dial indicator

KM-121, KM-121D, KM-121PW, KM-131, KM-132D, KM-130, KM-130R, KM-130D
  • Long stroke dial gauge of measuring range 20mm, 30mm.
  • Shock proof mechanism is adopted to all models.
  • Lift lever can be also adopted. (excluding KM-121PW)
Model : KM-121, KM-121D, KM-121PW, KM-131, KM-132D, KM-130, KM-130R, KM-130D

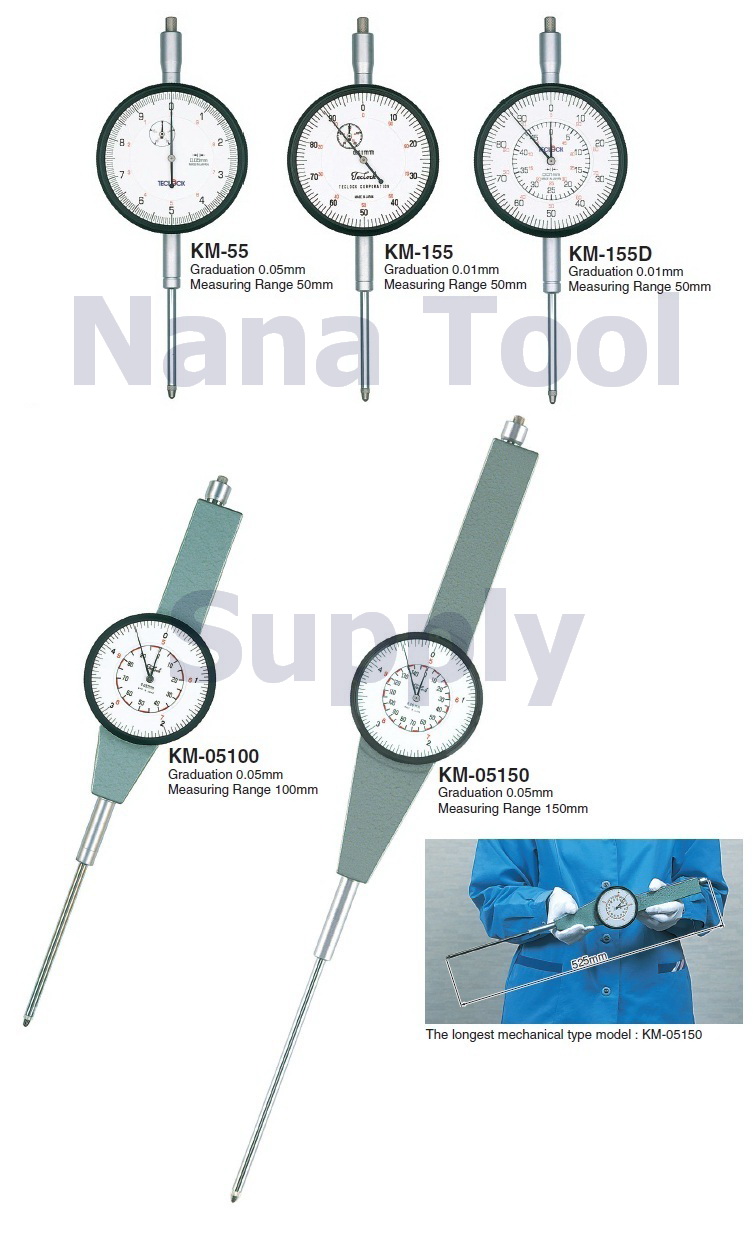

Teclock - Long stroke dial indicator


KM-55, KM-155, KM-155D, KM-05100, KM-05150
  • Long stroke dial gauge of which scale mark plate is large as 50mm, 100mm and 150mm.
  • Measuring up to 150mm stroke is realized with precision parts of high durability and TECLOCK original enlargement mechanism.
Model : KM-55, KM-155, KM-155D, KM-05100, KM-05150

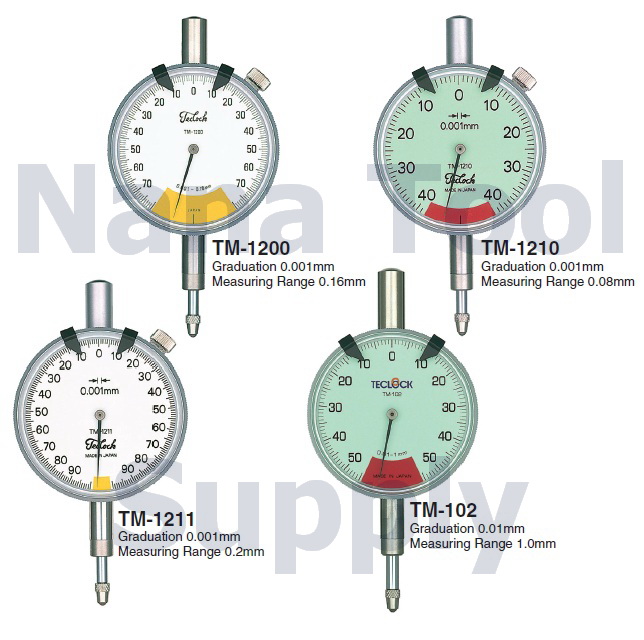

Teclock - One revolution dial indicator


TM-1200, TM1210, TM-1211, TM-102
  • This is less than 1 revolution dial gauge and effective for comparative measurement with scale interval 0.001mm, and 0.01mm.
  • High durability is materialized by adopting TECLOCK original enlargement mechanism.
  • Measuring range is subdivided for 0.08mm, 0.16mm,0.2mm and 1.0mm.
Model : TM-1200, TM-1210, TM-1211, TM-102

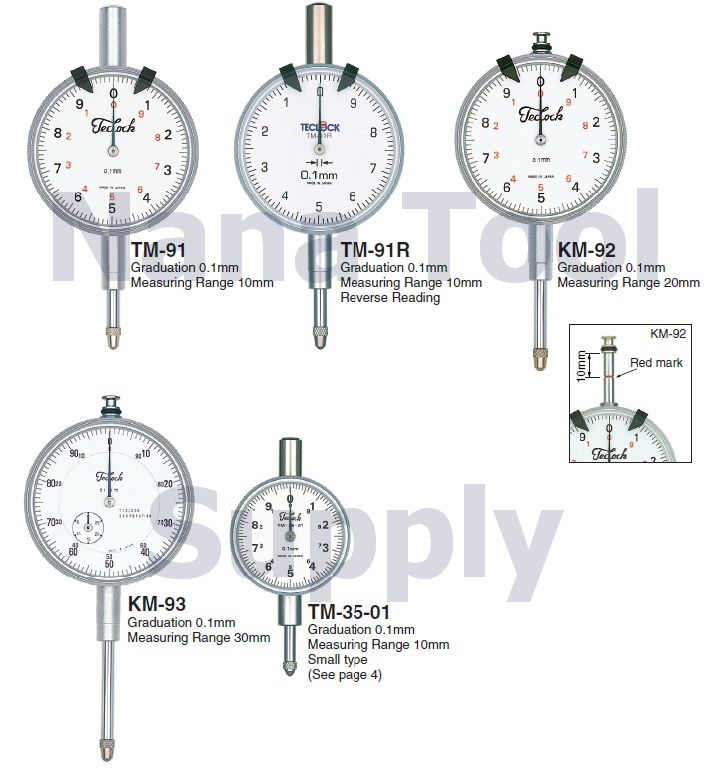

Teclock - 0.1mm dial indicator


TM-91, TM-91R, KM-92, KM-93, TM-35-01
  • This is the dial gauge of scale interval 0.1mm.
  • There are 3 types such as 10mm, 20mm and 30mm complying with measurement range.
  • This is used to measure approximate dimension for wooden work and leather products or to judge deviance dimension.
Model : TM-91, TM-91R, KM-92, KM-93, TM-35-01

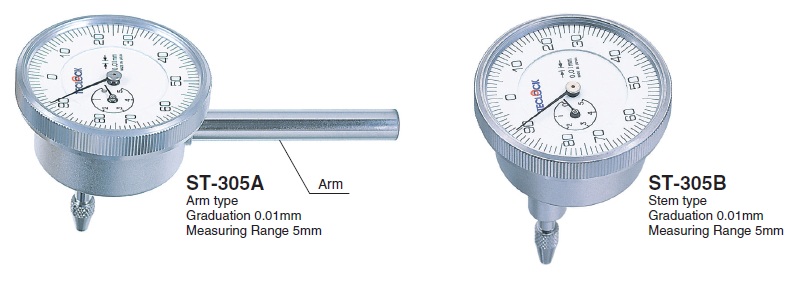

Teclock - Back plunger dial indicator


ST-305A, ST-305B
  • This differs from general dial gauges and its scale plate is set parallel against measured face . This is convenient to make smooth surface horizontal and read from front face of measured point.
Model : ST-305A, ST-305B
