Mahr - Comparator Stand 820 |

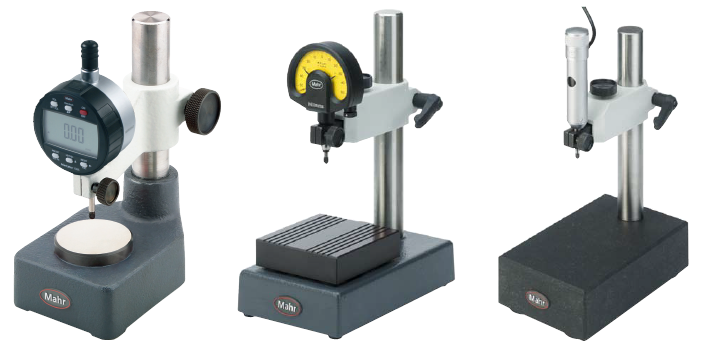

 820N 820FC 820FG
Features
• Sturdy design • Plate is made from eitherhardened steel or black granite or ceramic • Rugged ground post made of stainless steel • Fine adjustment, consisting ofa strong, rigid parallel spring assembly (Small ComparatorStands 820 FG and 820 FC) • Adjustable support arm of a indicating instrument

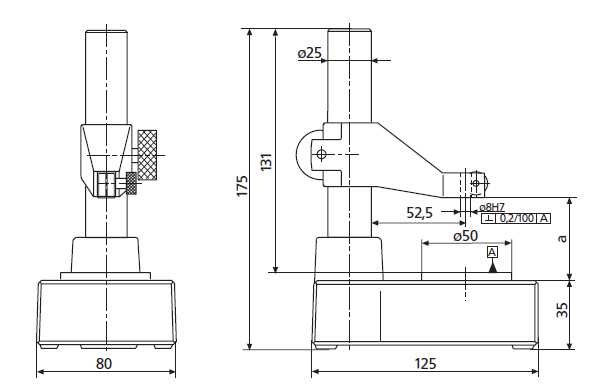

820N Mahr stand drawing

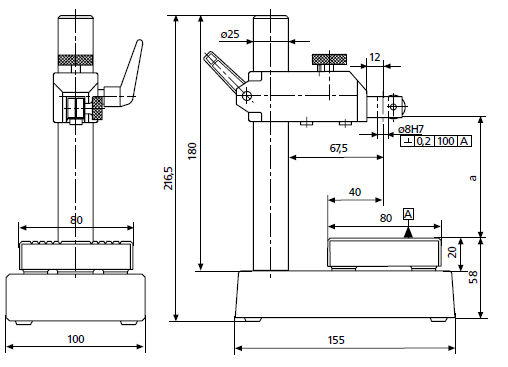

820FC Mahr Stand drawing

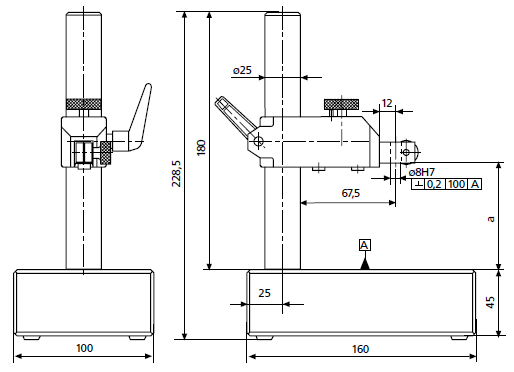

820FG Mahr stand drawing
|
|
|
