Mahr - Indicating Plug Gages844D

Features

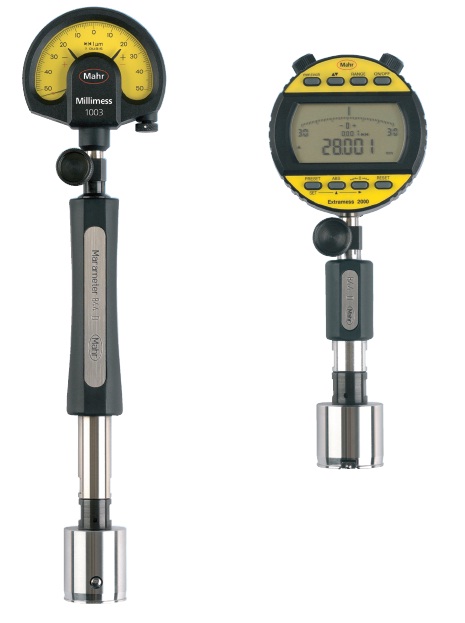

Indicating Plug Gages 844D

- For the rapid testing of diameter, roundness and conicity of bores
- Especially suitable for testing batches with tight tolerance
- No rocking in the bore is required to determine the reversal point

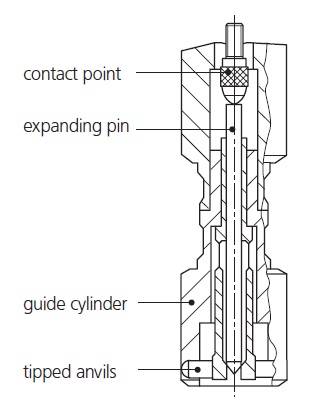

- Measuring head has a hardened chromium plated guide cylinder and carbide tipped anvils
- Constant measuring force as a result of built-in spring, thus eliminating user influence
- Nominal diameter of the bore above 2.980 mm.

- For workpiece tolerance <10um on request

- Use with 355E Ring Gage for highest accuracy














Accuracy

- Hystersis                         fu ≤ 0.4 μm
- Repeatability                   fw ≤ 1 μm
- Linearity                                ≤ 1 %
- Linearity 844Dks >8mm         ≤ 2 %
