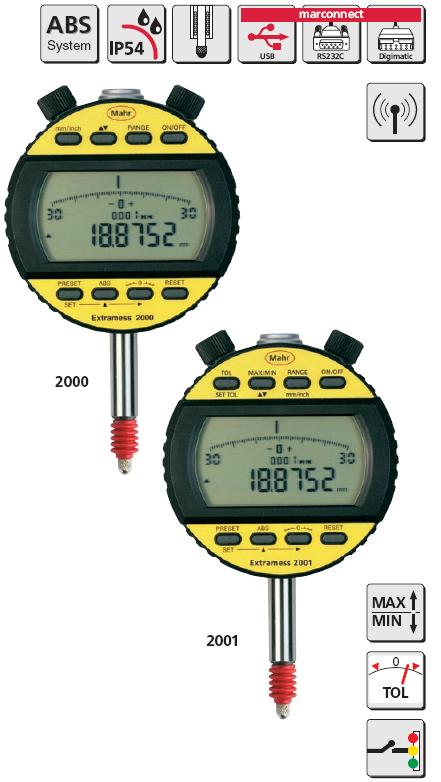

Mahr - Digital Comparator 2000/2001 (Discontinue)

Features

Extramess 2000

On/Off
RESET (set digital and analog dispalys to zero)
- "-0-" set analog display to zero
PRESET enter any numerical value
DATA data transmission
mm/inch switchable
- Reversal of counting direction

- Range (switch the measuring range and resolution)
- ABS (reference to electrical zero point)
- Linearized inductive absolute measuring system
- Measurement electronic is compensated for temperature
- Measuring force spring is interchangeable
- Lower stop is adjustable
- Operating and display unit (bezel) can be rotated through 280°
- Power supply via either the integrated rechargeable batteries (40 hrs.) or via the mains power adapter
- MarConnect data output :USB, OPTO RS232C, Digimatic
- High contrast LCD with 6.5 mm high digits. Analog display has a 4 mm long pointer for better visual perception, ideal when checking concentricity and flatness as well as search for the reversal point when measuring bores
- Supplied with: Mains adapter, rubber bellows and spanner for preliminary stroke setting, Operating instructions




Extramess 2001
Feature are identical to Extramess 2000, inaddition;

MAX/MIN memory, ideal to search for the reversal point
MAX/MIN memory, for testing flatness and concentricity
TOL enter tolerance limit values
- Tolerance band max = 0.18 mm
LOCK operating functions can be blocked via PC-software
Factor adjustable
Supplied with: Mains adapter, rubber bellows and spanner for preliminary stroke setting, Operating instructions


- Discontinue model, please see Digital Indicator 1086R-HR, 1087R-HR   [more details]
